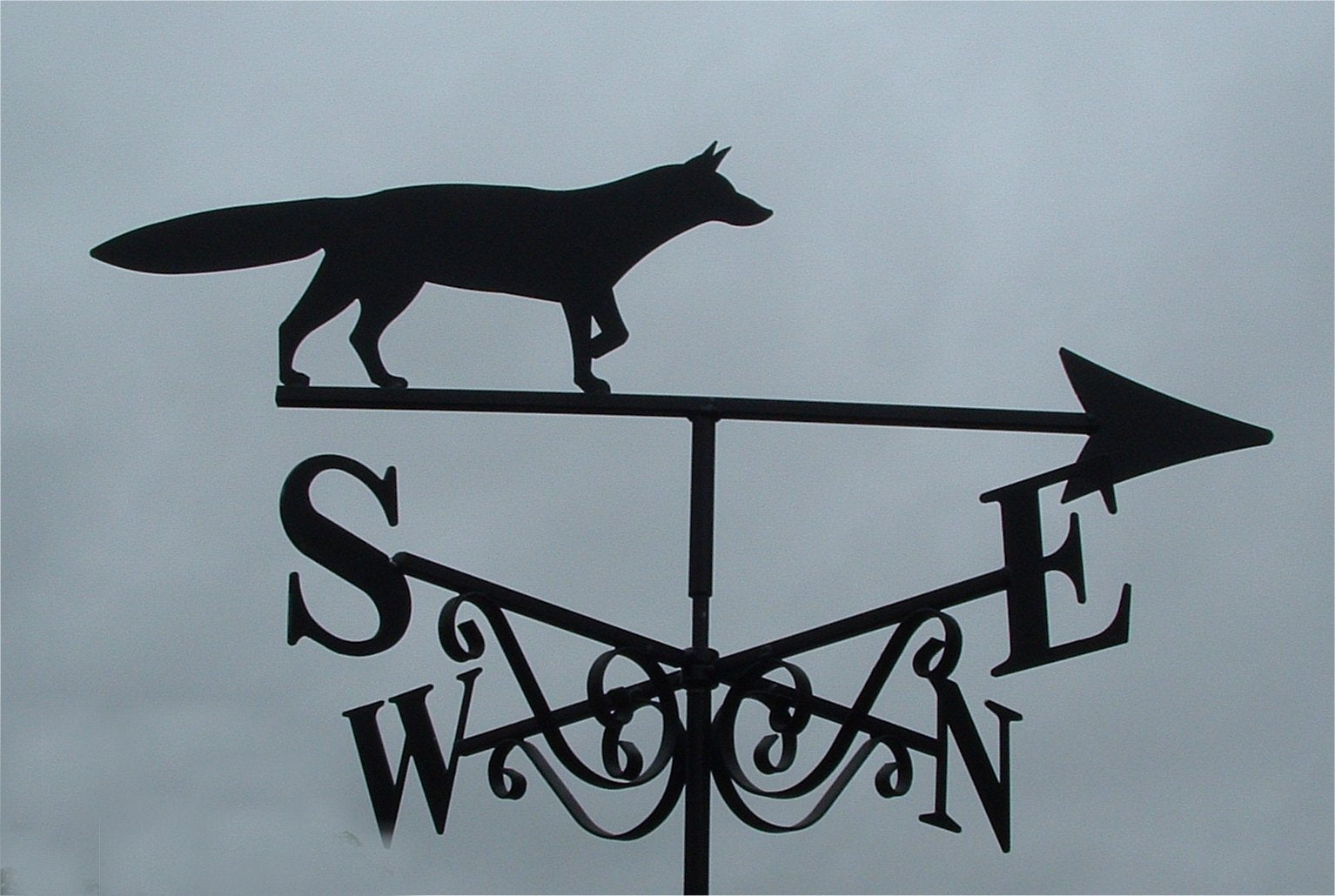

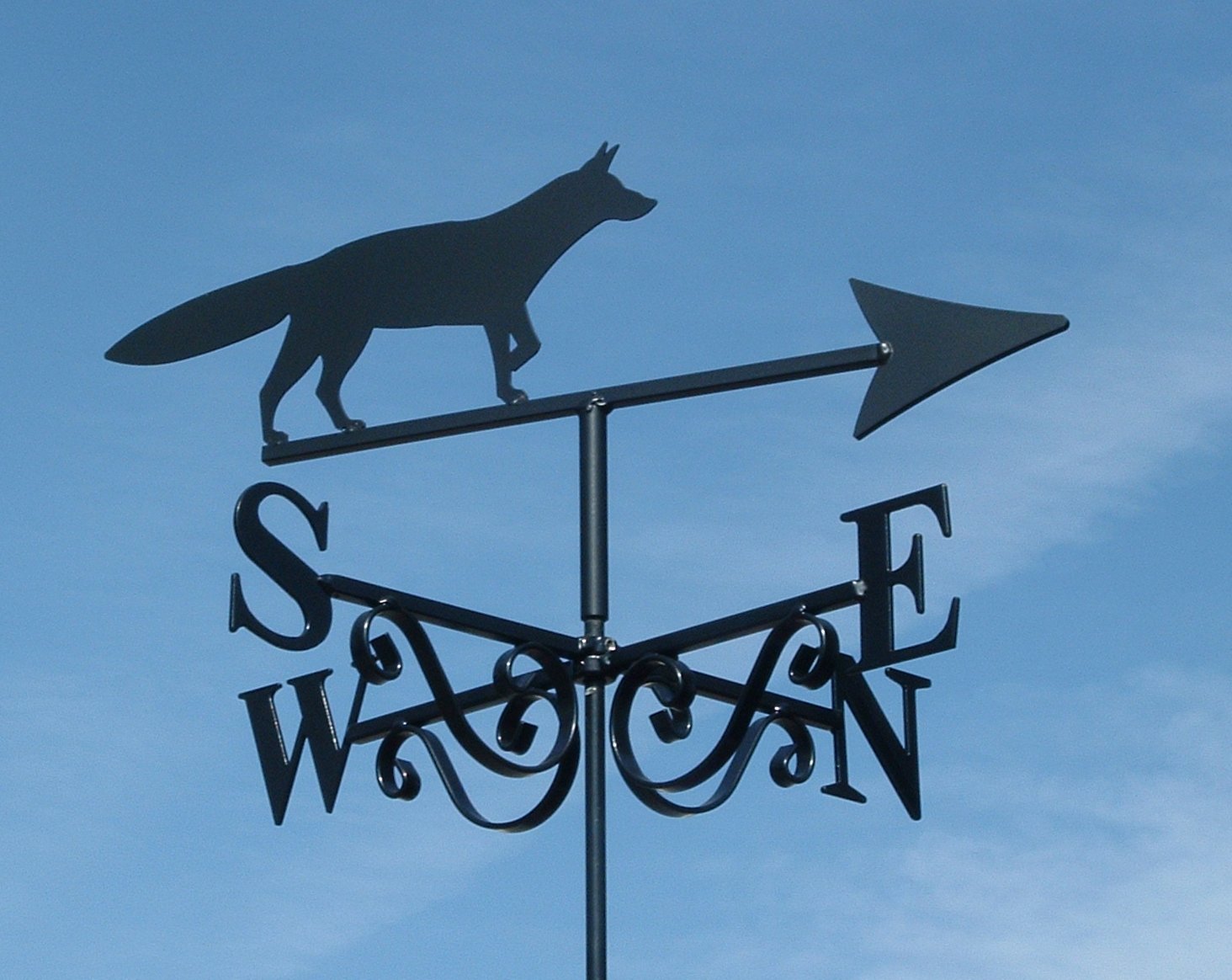

High precision laser cut design from 2mm steel directly mounted onto a strong steel mast for a clean and seamless look.
The chosen design comes complete with the mounting bracket of choice, steel mast, North/ South and East/ West cardinal points, steel bearing, copper grease sachet and fitting instructions.
All of our products are made to order. After lasing cutting is complete, it is then welded by hand at our workshop in Essex. Then it is balanced and mounted using a bearing for continued reliable movement. All of our metal work is zinc electric plated with an added passivate process prior to powder coating to ensure longevity. This is important to ensure it withstands our British weather and stays looking great for up to 30 years.
Size & Lettering Options
PETITE: Measuring 40cm across the cardinal points N to S, this size is suitable for sheds, greenhouses Pergolas, conservatories or small garages and outbuildings. These are finished in a durable black powder coating. Petite weathervanes have a single ended scroll, as below.
This size is available with three styles of fitting bracket.
MEDIUM: Measuring 55cm across the cardinal points N to S and suitable for use on garages, stables, bungalows, other single storey buildings and two storey small houses. Available with a choice of finish and letter style, we offer over 1200 designs, all individually made to order. These have a choice of 5 different fixings - see below. (The fixing options for these are not the same as for petite weathervanes)
LARGE: Measuring 70cm across the cardinal points N to S and suitable for use on barns & two storey buildings. Available with a choice of finish and letter style, we offer over 1200 designs, all individually made to order. These have a choice of 5 different fixings - see below. (The fixing options for these are not the same as for petite weathervanes)
You also have the option to add gold leaf style painted lettering to the cardinal points. The gold leaf effect is hand painted by a local artist using tough enamel paint, which has been designed to withstand typical British weather.
Mast Height & Mounting Brackets
Petite 'L' Bracket
Simple 50mm projected L bracket, only for petite designs. Very adaptable to many places, ideal for shed roof, summer houses. 8mm steel post that is 30cm tall plus the bracket.
Petite Wood Screw
This fitting is best designed for going into a post, be it centre point of a gazebo or fence post. 8mm steel post that is 30cm tall with 50mm wood screw.
Designed to go on the gable end of your building. This fitting also works on chimneys and most vertical walls. This is the most universal fitting, so ideal for gifts. The mast is 12mm diameter steel with M12 Thread.
Medium 18" (45cm) tall with 6" projection, ideal for medium vanes.
Large 24" (60cm) tall with the additional T piece, best for large vanes.
XLarge 28" (70cm) tall with an 8" projection including T piece.
Side plate measuring 3" by 5" with four 8mm precut holes, fixed to a steel mast with a 12mm diameter. If you are at all unsure, the Gable End is a more universal option for wall fixing.
Medium 18" (45cm) tall.
Large at 24" (60cm) tall.
Design to go on top of a wooden or metal post, these are often used on fence posts, at the centre of gazebos or garden houses. This comprises of a 12mm diameter mast (8mm for petite) with a 2.5" sqaure plate of 5mm thick steel.
Petite 12" tall (30cm)
Medium 18" tall (45cm)
Large 24" tall (60cm).
This fitting is designed to saddle the 1.5" wide ridge beam which is beneath the ridge tiles. Please note that it requires removal and refitting of tiles (unless the property is a new build). A 12mm diameter steel mast.
Medium 18" tall (45cm)
Large 24" tall (60cm)
Clock Tower Fitting
The 24" Clock Tower is 12" tall (30cm) above the roofline plus 12" (30cm) of substantial 12mm thread below the roof line. Designed primarily for clock towers, these have also been suited to some gazebo designs or similar garden buildings.
Designed for M/L/XL for petite we suggest wood screw.
